Product Features

Integrated Source-Grid-Load-Storage Simulation Architecture

Integrates conventional power systems, renewable energy generation, and energy storage technologies to create a complete “source-grid-load-storage” integrated practical training environment.

High-Precision Physical Quantity Simulation Technology

Uses a double-circuit transmission line model to simulate power system characteristics under different tie-line impedance conditions.

Full-Process Fault Simulation System

Supports the setting and reproduction of multiple fault conditions, including instantaneous overcurrent, overcurrent, overvoltage, and undervoltage.

Virtual Grid-Connection Operation Training

Simulates real grid-connection operating procedures such as manual quasi-synchronous paralleling, excitation control adjustment, and under-excitation limiter testing.

Microprocessor-Based Protection Setting Training

Integrates complete protection function modules, including overcurrent protection, automatic reclosing, accelerated overcurrent protection, and underfrequency load shedding protection.

Renewable Energy and Energy Storage Scenarios

Covers three scenarios—photovoltaic power generation, wind power generation, and energy storage systems—with full-process training in design, installation, operation, and maintenance.

Standardized Assessment System

Integrated assessment of theoretical knowledge and virtual simulation-based practical operations.

Specifications

Software Configuration

Category	Name	Version / Requirement
Operating System	Windows	64-bit Windows 10 or later
Simulation Engine	Power System Automation Simulation Platform	V3.0
Browser	Google Chrome	V131 or later
Supporting Software	Microsoft Office	2007 or later

Recommended Hardware Configuration

Equipment	Specification
Processor	Intel Core i7
Memory	16 GB DDR4
Storage	512 GB SSD
Graphics Card	GTX 1660
Monitor	23-inch, 1920 × 1080 resolution, 5 ms response time
Network	Gigabit Ethernet

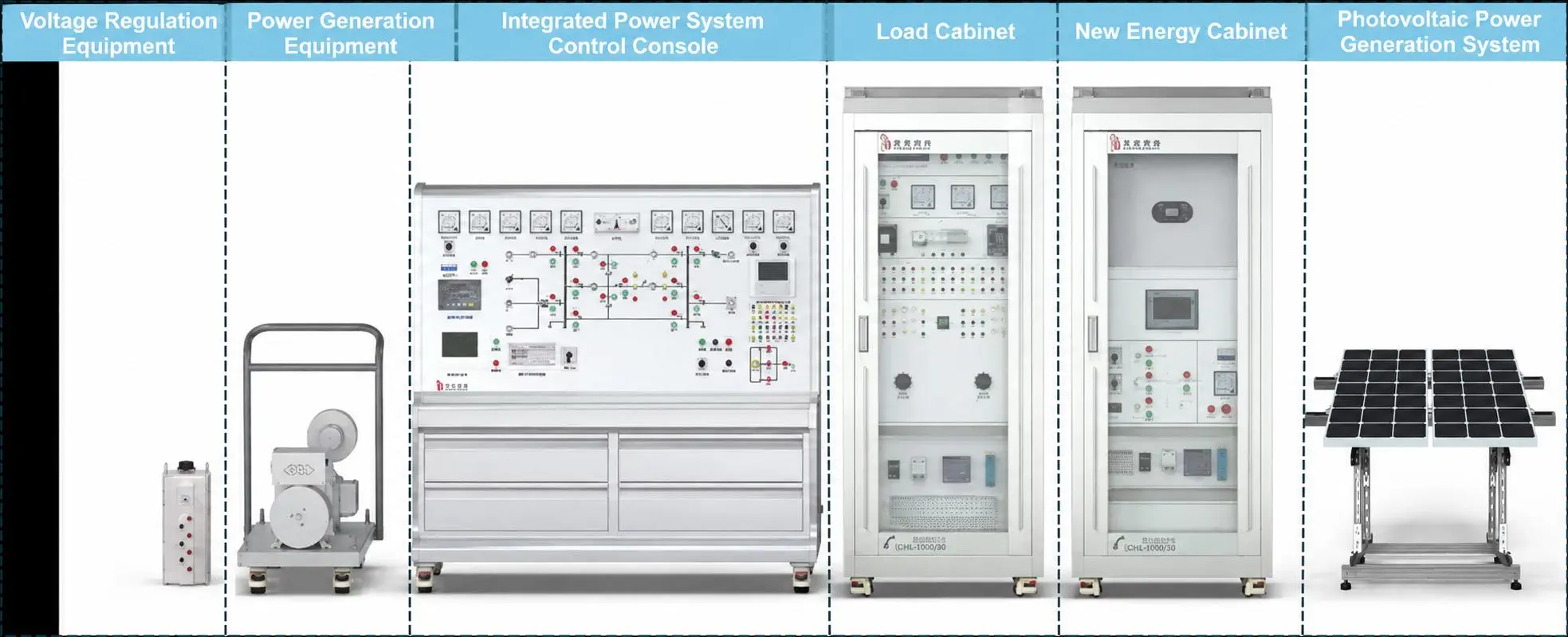

Platform Core Equipment Configuration

Equipment	Technical Specifications
Generator Set Simulation Module	Three-phase synchronous generator, coaxial DC motor, speed measurement device, power-angle indicator
Power System Automation Devices	Microprocessor-based speed governor, microprocessor-based excitation regulator, microprocessor-based quasi-synchronizing controller, microprocessor-based line protection device
Renewable Energy Generation and Storage Unit	Photovoltaic power generation simulation, wind power generation simulation, grid-connected wind-solar generation and energy storage system
Load Control System	Programmable logic controller, various simulated loads, signal acquisition and control unit
Fault Troubleshooting Module	Simulation of control signal faults, energy storage circuit faults, and voltage/current measurement faults

Application Scenarios

Vocational Education and Practical Training

· Basic power system teaching, renewable energy technology training, and relay protection experiments

· Commissioning and maintenance skills training for power system automation devices

· Full-process training in the design, installation, operation, and maintenance of renewable energy generation systems

Professional Skills Assessment

· Assessments for power system automation-related courses

· Periodic assessment of trainees’ skill levels

· Recording of practical training operations and standardized scoring

Industry Workforce Training

· Skills upgrading training for power operation and maintenance personnel

· Pre-job training for renewable power station operation and maintenance personnel

· Training in power safety operating procedures and emergency response drills

Cognitive Learning

· Visualized teaching of power system operating principles

· Immersive learning of renewable power generation principles

· Case-based teaching of power system fault analysis and troubleshooting

 Virtual Simulation Experiments

· Online assessment of theoretical knowledge

· Virtual simulation practical skills training

· Recording of operating processes and automatic scoring

FAQ

Q. Which power system scenarios can the Power System Automation Simulation Training Platform simulate?

A: The platform covers three core scenarios: conventional power system automation, renewable energy generation (photovoltaic and wind power), and energy storage systems. It provides complete “source-grid-load-storage” simulation training and supports full-process skills training from power system fault troubleshooting, automated grid-connection operations, and microprocessor-based protection setting and commissioning to the design, construction, operation, and maintenance of renewable energy systems.

Q. Can beginners with no prior knowledge quickly learn to use the platform?

A: Yes. The platform adopts a progressive instructional design, starting with basic understanding of power systems and gradually advancing to equipment operation, system commissioning, and fault handling. It includes detailed operating instructions and step-by-step guidance. Combined with the safety of virtual simulation, beginners can quickly master core skills in a risk-free environment.

Q. Does the platform support simultaneous online training for multiple users?

A: Yes. The platform adopts a B/S architecture and supports concurrent access by multiple users, making it suitable for classroom teaching and team-based collaborative training. The system provides separate student and instructor roles. Instructors can monitor trainees’ operating status in real time and provide remote guidance.
