Product Features

• High-Precision 3D Scanning

Using industrial-grade blue laser scanning technology, the platform supports data acquisition for complex surfaces, deep holes, and fine-detail structures. Accuracy can reach up to 0.02 mm, meeting the needs of both teaching and industrial inspection applications.

• Multi-Mode Scanning

Supports high-speed scanning, fine scanning, deep-hole and deep-cavity scanning modes. It can adapt to different part sizes and structural features for teaching practice and complex industrial scenarios.

• Complete Digital Inspection Workflow

Supports device calibration, 3D data acquisition, point cloud denoising, CAD model alignment, overall deviation analysis, cross-section analysis, dimensional evaluation, and inspection report output.

• Industrial Software Ecosystem

The platform supports ScanViewer, Geomagic Design X, ZCIMAGE, and related software tools, covering scanning, reverse modeling, inspection analysis, and other complete application workflows.

• Multi-Format Data Output

Supports common industrial data formats including STL, OBJ, PLY, ASC, IGS, and TXT, making it convenient for subsequent modeling, inspection, additive manufacturing, and digital archiving.

• Support for Teaching and Skills Competition Scenarios

Suitable for daily teaching in vocational colleges, as well as skills competitions, project-based training, enterprise training, and engineering practice.

Technical Specifications

Item	Specification
Equipment Models	SIM-TRACK42, ZCSCAN-S3
Scanning Modes	High-speed scanning, fine scanning, deep-hole scanning
Accuracy	Up to 0.02 mm
Resolution	Up to 0.02 mm
Scanning Rate	Up to 4,900,000 measurements per second
Depth of Field	360 mm-400 mm
Output Formats	STL, OBJ, PLY, ASC, IGS, TXT, and other formats
Operating System	Windows 10/11 64-bit
Recommended Configuration	Intel i7 / 32 GB RAM / NVIDIA RTX3060
Supported Languages	Chinese, English, German, Russian, Korean

Application Scenarios

Vocational Education and Teaching

Used for practical training in 3D scanning, reverse engineering, digital inspection, quality control, and related courses.

Skills Competition Training

Supports training tasks for intelligent industrial part inspection, digital innovation design, reverse modeling, and related skills competitions.

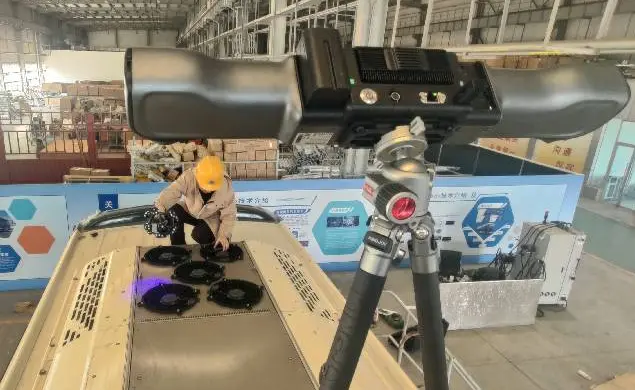

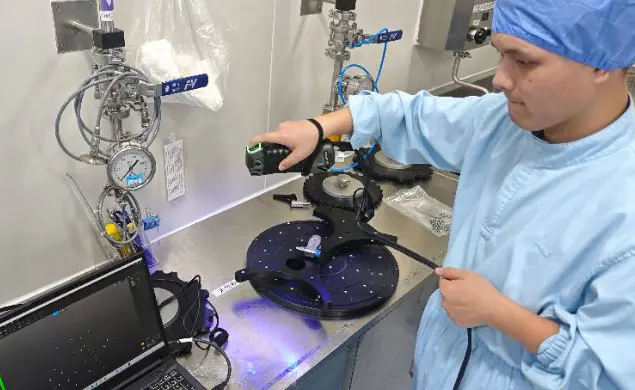

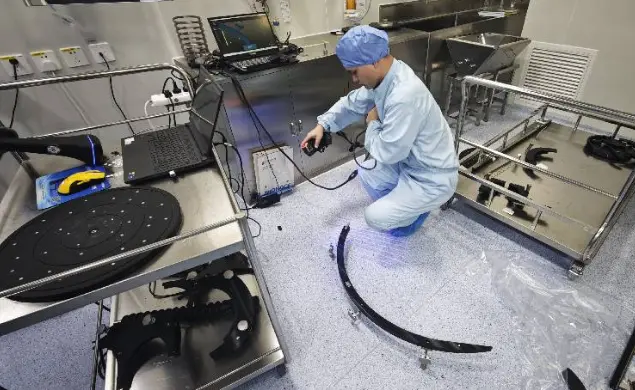

Industrial Quality Inspection

Used for dimensional inspection, GD&T analysis, and deviation evaluation of complex parts.

Reverse Engineering and Product Development

Enables product digital reconstruction and innovation design through 3D data acquisition and modeling.

Enterprise Training and Project Practice

Suitable for enterprise technical training, hands-on project practice, and digital manufacturing application scenarios.

FAQ

Q: Can beginners learn with this platform?

A: Yes. The platform supports progressive learning from basic device operation to the complete digital inspection workflow.

Q: What data formats does the platform support?

A: It supports commonly used industrial data formats such as STL, OBJ, PLY, ASC, and IGS.

Q: Which professional fields is the platform suitable for?

A: It is suitable for smart manufacturing, mechanical design, quality inspection, reverse engineering, additive manufacturing, and related fields.

Q: Does the platform support enterprise project applications?

A: Yes. The platform can be used in enterprise scenarios such as product inspection, digital modeling, reverse analysis, and quality control.
